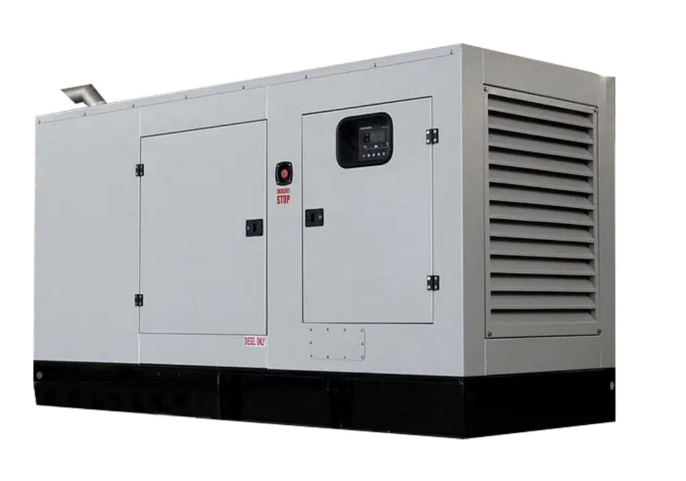

100kVA 3-Phase SDEC Silent Generator
R320000,00
100kVA 3-Phase SDEC Silent Generator
Details
- Maximum 110kVA Standby, 380V, 1500 RPM
- 245 litre tank : 17 Hours runtime @ 75% load
- Built-in AVR delivers non fluctuating power
- 24v Electric Starter
- 4 Cylinder, Water cooled Powerful Diesel Engine
- Three Phase Output
- 100kVA Prime Silent Diesel Generator
- Warranty: 12 Months or 1000 Hours
7 in stock
FEATURES
- Maximum 110kVA Standby, 380V, 1500 RPM
- 245 litre tank : 17 Hours runtime @ 75% load
- Built-in AVR delivers non fluctuating power
- 24v Electric Starter
- 4 Cylinder, Water cooled Powerful Diesel Engine
- Three Phase Output
- 100kVA Prime Silent Diesel Generator
- Warranty: 12 Months or 1000 Hours
PERFORMANCE
| Prime power (PRP) | 100 kVA |
| Standby power (LTP) | 110 kVA |
| Power factor | 0.8 φ |
| Frequency | 50 Hz |
| Voltage | 380 V |
GENERAL ENGINE DATA
| Engine brand | SDEC |
| Engine model | 4HTAA4.3-G11 |
| Engine Type | 4 Cylinder, Water cooled |
| Prime Power (kW) | 95 |
| Standby Power (kW) | 105 |
| Air intake type | Turbo & Aftercooler |
| Cooling mode | Water cooled |
| Governor mode | Mechanical |
| Bore x Stroke(mm) | 105 x 124 |
| Rated speed (RPM) | 1500 |
| Displacement(L) | 4.3 |
| Starter Motor | 24v |
| Description | Diesel Generator |
GENERAL DATA
| Controller Brand | Datakom |
| Controller Model | D300-MK3 |
| Structure Type | Silent |
| Noise Level (dBA @ 7m) | 72 |
| AVR | Constant voltage AVR |
| Excitation Mode | Self Excitation |
| Fuel Type | Diesel |
| Recommended Oil | L-ECD grade or 15W40 |
| ISO9001 Certified | Yes |
| CE Certified | Yes |
DIMENSIONS & TANK
| Length | 2700 mm |
| Width | 1050 mm |
| Height | 1600 mm |
| Weight | 1545 kgs |
| Tank Capacity | 245 l |
| Cons. @ 50% Load | 9.4 l/h |
| Cons. @ 75% Load | 14.1 l/h |
| Cons. @ 100% Load | 18.8 l/h |
BATTERY DATA
| Brand | Varta |
| Model | 6-QW-60(580)-L |
| Voltage | 12V |
| Quantity | 2 |
| Capacity | 60Ah |
| Dimensions | 246*174*190 mm |
| Type | Maintenance Free |
ALTERNATOR DATA
| Alternator Brand | DPK |
| Alternator Model | DPC274C |
| Rated Current (A) | 167 Amps Per Phase |
| Pole Number | 4 |
| Phase Number | Three Phase |
SILENT CANOPY
| Canopy Material | Mild Steel |
| Canopy Colour | White (RAL9010) |
| Base Material | Mild Steel |
| Base Color | Black |
